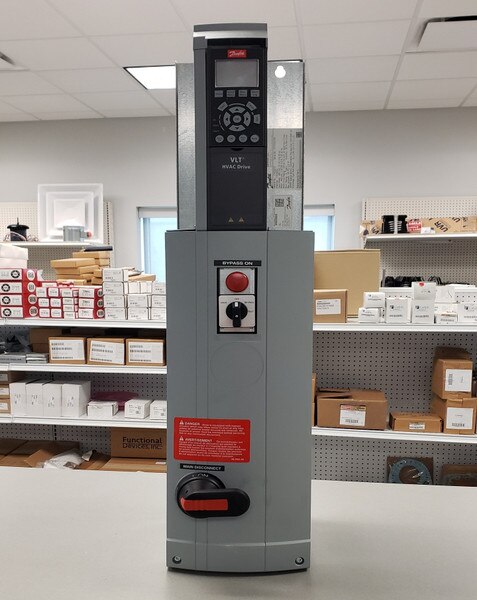

174Z1941 5.0 HP 460V BYPASS NEMA 1
Actual product may differ from image
5HP, T4 460 Volt, E01 Nema 1
APU CONSISTING OF:
3C 3 Contactor Bypass, M Main Disconnect Switch,
N 100kA SCCR, EMB2 Electro-mech bypass,
G Graphical, S Single Motor,
X, X,
2 RFI Filter Standard, X No Communication Cards,
X No Input/Output Cards, X No Reactor/Filter,
X No Conformal Coating, X No Brake Chopper,
X No Option C2, XX No Software option,
X No Option D Cards, FRAME SIZE: A2
TYPE 3R ENCLOSURE: N/A
S102005T4E013CMN2XXSXXZ2XGXXXXXXXXXXXXXX
MECHANICAL DRAWING: 176U8485
ELECTRICAL DRAWING: 174U9062
APU CONSISTING OF:
3C 3 Contactor Bypass, M Main Disconnect Switch,
N 100kA SCCR, EMB2 Electro-mech bypass,
G Graphical, S Single Motor,
X, X,
2 RFI Filter Standard, X No Communication Cards,
X No Input/Output Cards, X No Reactor/Filter,
X No Conformal Coating, X No Brake Chopper,
X No Option C2, XX No Software option,
X No Option D Cards, FRAME SIZE: A2
TYPE 3R ENCLOSURE: N/A
S102005T4E013CMN2XXSXXZ2XGXXXXXXXXXXXXXX
MECHANICAL DRAWING: 176U8485
ELECTRICAL DRAWING: 174U9062
5 HP 460V BYPASS NEMA 1
