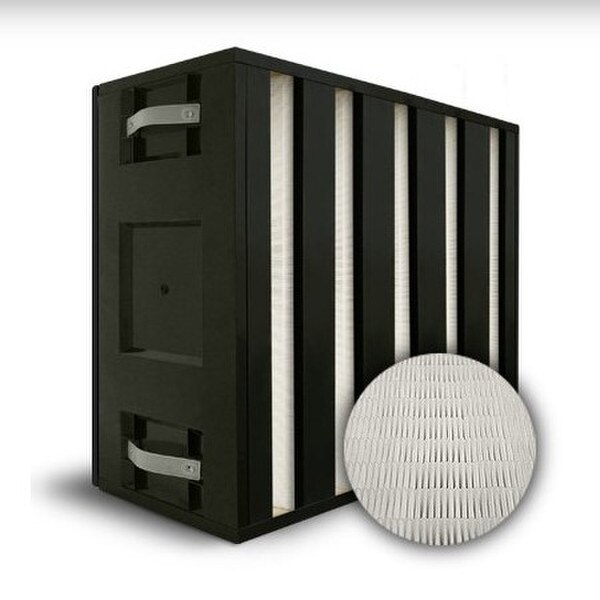

24x24x12 Blackbox 5 V-Cell HEPA
Actual product may differ from image
Air Filters Incorporated™ BlackBOX™ 24"x24"x12" box style V-Cell filters with 20% percent additional filter area and can direct replacement for older less efficient rigid cell filters. Perfectly designed for use in air filtration systems using filter banks and/or side access housings. These filters are specifically designed for use with compressors, gas turbine and industrial engines. Black Box™ V-Cell provides a superior combination of low pressure drop and high efficiency through the use of our unique mini-pleat design. This extended surface design ensures low resistance to airflow and reduce energy cost.
Our Black Box™ V-Cell design can resist moisture and humidity associated within the air stream and are a perfect solution to reducing the cost associated with heating and cooling makeup air intake and recirculating applications for commercial, industrial and medial facilities.
Specially formulated adhesive beads insure even airflow and filter strength and is completely sealed within the frame with urethane to eliminate air bypass.
FEATURES:
BlackBOX™ box style V-Cell filters are durable, plastic box frame makes this rigid box filter of choice in filtration systems with high velocities, variable air volumes & high moisture. The lightweight plastic frame installs easily into side-access housings or front-load holding frames and is an ideal choice to replace bag filters and other box-style rigid filters.
Suitable for High Humidity.
Low Pressure Drop.
Can Flow Either Direction.
Corrosion Resistant.
Upgrade Existing Equipment.
Recommended final pressure drop: 650Pa, 2.6” w.g.
Temp: 60-80˚C, 140-175˚F (Spike Conditions).
CONSTRUCTION:
BlackBOX™ rigid style box filter is constructed from plastic and secured to frame with specialized media sealant ensuring the elimination of air bypass.
Constructed of HIPS and ABS plastic.
Gasket for down-stream.
Mini-pleat Design with glass fiber utilizing a hot melt bead separator.
| SKU | HEPA-5V-242412PFBG2-BOC |
|---|---|
| HEPA Efficiency | HEPA @ 0.3 um 99.999% |
| Capacity | High Capacity |
| Filter Frame Material | Plastic |
| Gasket Configuration | Down Stream -> Air Exit |
| Media Type | Synthetic |
| U.S. Efficiency | HEPA 99.999% |
| Euro Efficiency | EN1822-H14 |
| Shipping | Ship within 24 hours |
| Market | Industrial, Commercial , Oil and Gas |
| Applications | Carcinogenic , Cleanroom , Commercial Building , Computer Lab , Food Processing , Hospital Exams , Hospital Labs , Hospital Surgery , Industrial Workplace , Micro-Electronic Component Assembly , Office Buildings , Pharmaceutical Mfg, Manufacturing Plant |
| Characteristics | 3 Month Filter , Disposable, Down-Stream Gasket, HEPA 99.999% , High Capacity , Low Pressure Drop, Moisture Resistant, No Header, Secondary Filter , Straight Box , V-Cell , Final Filter |
| Filtered Contaminants | bacteria , beach , concrete , dander , dust , fog , hair , insect , leaves , mite , mold , pollen , sawdust , smog, smoke , allergens |
| Construction / Style | 5 V-Cell Frame, Gasket , Plastic Box Frame , V-Cell Frame , Box Style , Mini-Pleat |
| Media | Paper, Microglass |
| Filter Frame | Plastic |
| Pleats Per Foot | 108 |
| Actual Size | 23 3/8 x 23 3/8 x 11 1/2 |
| Nominal Size | 24 x 24 x 12 |
| Manufacturer | Air Filters Incorporated |
| MFG Part | HEPA-5V-242412PFBG2-BOC |
